1.2 Meter Edge Belt Conveyor (1 Stage)
Model: GBC-510-1200-1
Inline SMT Edge Belt Conveyors are specifically designed to transport, buffer, and inspect printed circuit boards between machines. These conveyors are user-friendly and low-maintenance, incorporating features such as SMEMA communication, an inspection mode, ESD worktable, hand-crank width adjustment, adjustable speed control, and adjustable height.
Specifications
Complies with IPC SMEMA 9851 standards
Dimensions: Length 1200mm, Width 873mm, Height 950mm +/- 30mm
PCB size(LxW): 50x50mm - 510x1180mm(610 Series: 610-1180mm)
PCB Thickness: 0.6 mm to 6 mm
Board Edge Clearance: 4.5 mm
Transfer Speed: 0-10 M/Min.
Number of Drive Sections: 1
Width Adjust: Hand Crank
Control System: Mitsubishi MELSEC PLC
Operating Modes: Inspect or Bypass
SPG Motors and Drives
Power Supply: 120 Volts
Dimensions: Length 1200mm, Width 873mm, Height 950mm +/- 30mm
PCB size(LxW): 50x50mm - 510x1180mm(610 Series: 610-1180mm)
PCB Thickness: 0.6 mm to 6 mm
Board Edge Clearance: 4.5 mm
Transfer Speed: 0-10 M/Min.
Number of Drive Sections: 1
Width Adjust: Hand Crank
Control System: Mitsubishi MELSEC PLC
Operating Modes: Inspect or Bypass
SPG Motors and Drives
Power Supply: 120 Volts
Options
Right to Left Board Flow
PCB Width: 50mm – 610mm
Light Stand (Light Stand, Process Holder, Shelf)

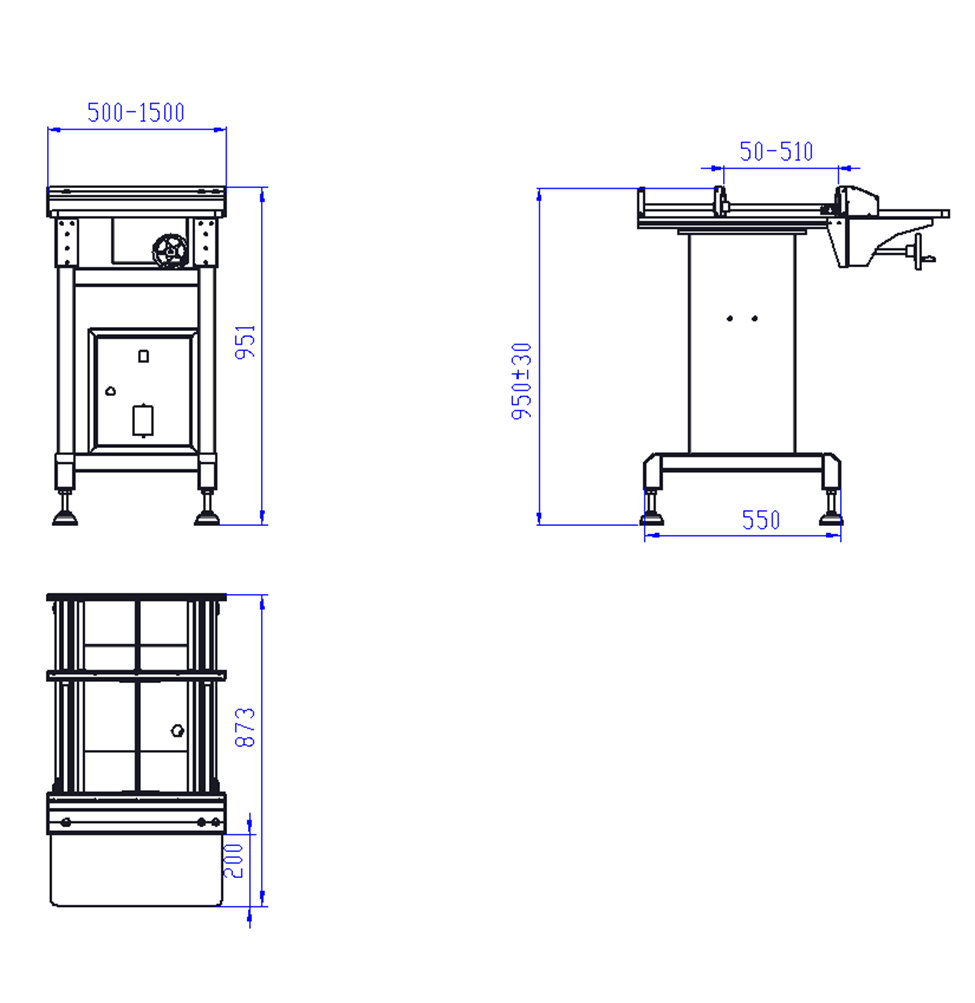

Dimensional Drawings
Warranty Information
1-Year Factory Parts Warranty
