Description
1.35 Meter Pin Chain Conveyor (2 Stage)
Model: GPC-610-1350-2
Inline SMT Pin Chain Conveyors are specifically designed to transport, buffer, and inspect printed circuit boards between machines. They can handle heavy or hot printed circuit boards with ease. These conveyors are user-friendly and low-maintenance, incorporating features such as SMEMA communication, an inspection mode, hand-crank width adjustment, adjustable speed control, and adjustable height.
Specifications
Complies with IPC SMEMA 9851 standards
Dimensions: Length 1000mm, Width 873mm, Height 950mm +/- 30mm
PCB size(LxW): 50x50mm - 610x655mm
PCB Thickness: 0.6 mm to 6 mm
Board Edge Clearance: 4.5 mm
Transfer Speed: 0-10 M/Min.
Number of Drive Sections: 2
Width Adjust: Hand Crank
Control System: Mitsubishi MELSEC PLC
Operating Modes: Inspect or Bypass
SPG Motors and Drives
Power Supply: 120 Volts
Options
Right to Left Board Flow

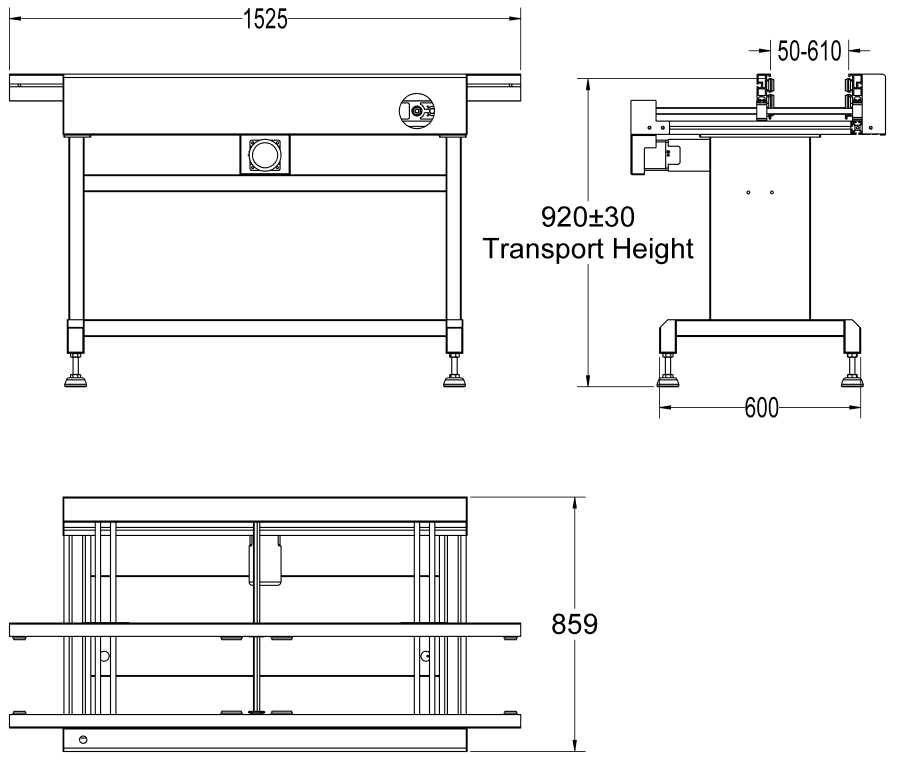

Dimensional Drawings
