1 Meter Edge Belt Conveyor (2 Stage)
Model: GBC-510-1000-2
Inline SMT Edge Belt Conveyors are specifically designed to transport, buffer, and inspect printed circuit boards between machines. These conveyors are user-friendly and low-maintenance, incorporating features such as SMEMA communication, an inspection mode, ESD worktable, hand-crank width adjustment, adjustable speed control, and adjustable height.
Specifications
Complies with IPC SMEMA 9851 standards

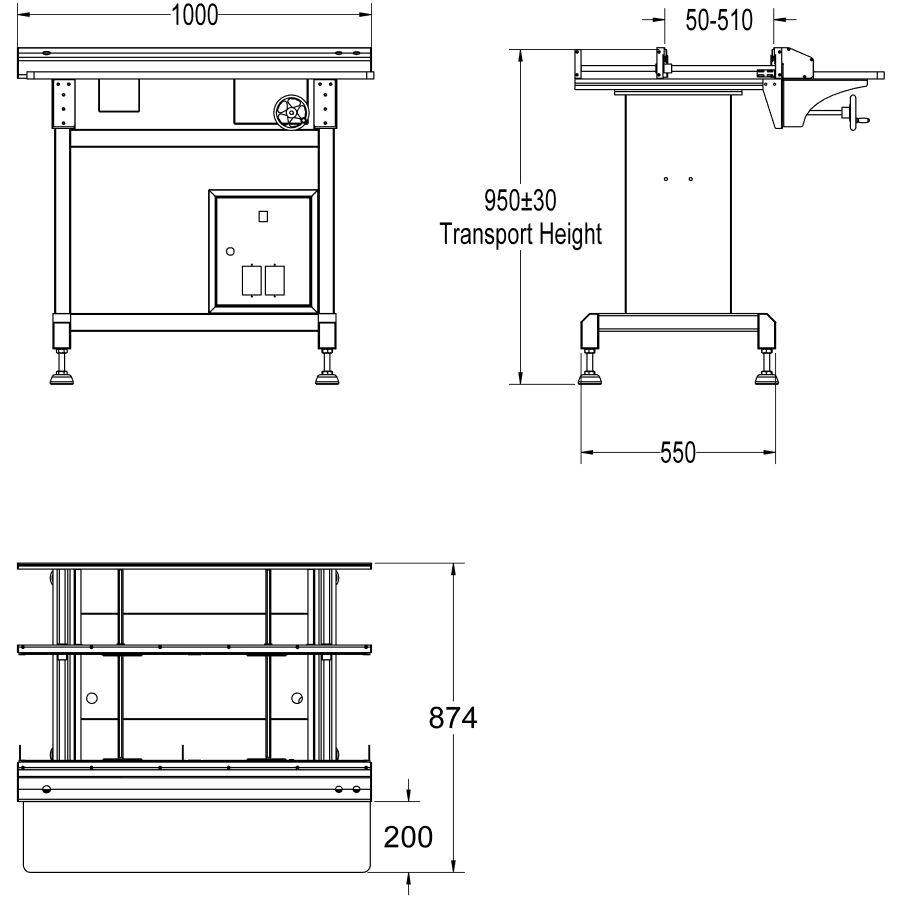

Dimensions: Length 1000mm, Width 873mm, Height 950mm +/- 30mm
PCB size(LxW): 50x50mm - 510x480mm(610 Series: 610-480mm)
PCB Thickness: 0.6 mm to 6 mm
Board Edge Clearance: 4.5 mm
Transfer Speed: 0-10 M/Min.
Number of Drive Sections: 2
Width Adjust: Hand Crank
Control System: Mitsubishi MELSEC PLC
Operating Modes: Inspect or Bypass
SPG Motors and Drives
Power Supply: 120 Volts
