Lift Gate 510mm

$8,500.00
SKU:
LG-510-1200-2
Condition:
New
Weight:
475.00 LBS
Width:
48.00 (in)
Height:
48.00 (in)
Depth:
48.00 (in)
Adding to cart… The item has been added
Brochure Download

Description

Lift Gate 510mm

Model: LG-510-1200-2

Inline SMT PCB lift gate conveyors are designed to transfer printed circuit boards between manufacturing machines while allowing for an opening in the production line. They are built for easy operation and maintenance and include features such as SMEMA communication, safety sensors, a light tower, a hand crank for width adjustment, adjustable speed control, and adjustable height.

Specifications:

Complies with IPC SMEMA 9851 standards
Dimensions: Length 600mm, Width 1098mm, Height 1250mm
PCB size(LxW): 50x50mm - 580x510mm
PCB Thickness: 0.6 mm to 6 mm
Board Edge Clearance: 4.5 mm
Transfer Speed: 0-10 M/Min.
28” Aisle Opening
Width Adjust: Hand Crank
Control System: Mitsubishi MELSEC PLC
Includes Light Tower
Power Supply: 120 Volts
Air Supply: 80PSI

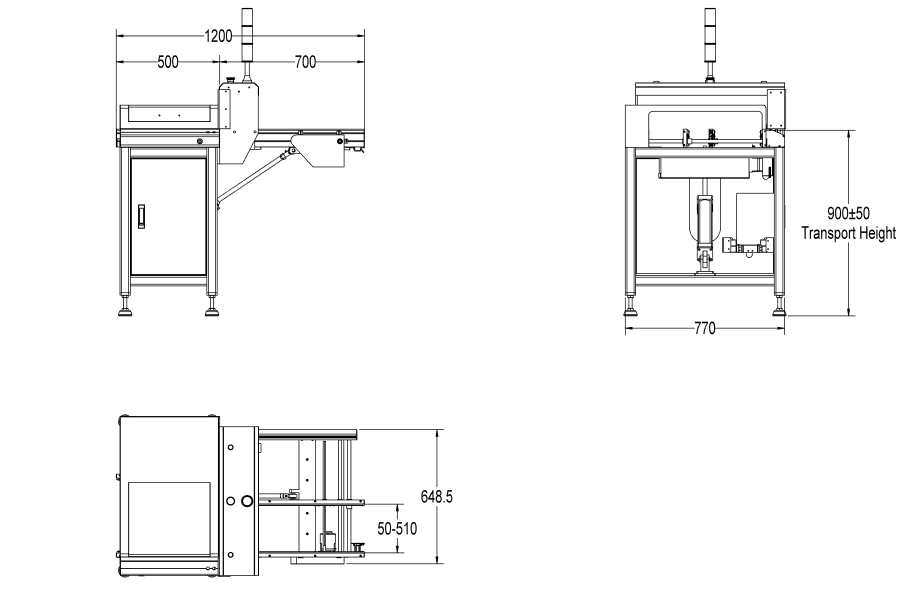

Dimensional Drawings

Warranty Information

1-Year Factory Parts Warranty
