PCB Magazine (L355xW320xH563)

$235.00 - $255.00
SKU:
COP-803
Condition:
New
Weight:
25.00 LBS
Width:
20.00 (in)
Height:
7.00 (in)
Depth:
25.00 (in)
Adding to cart… The item has been added
Brochure Download

Description

PCB Magazine (L355xW320xH563)

Model: COP-803

Inline SMT PCB magazines are designed for storing and transporting printed circuit boards. They are built for easy operation and maintenance, featuring quick-adjust lever locks, an ESD surface, and a capacity for 50 printed circuit boards.

Specifications

L355xW320xH563mm
Reference Position A: 34mm
Reference Position B (Top) : 34mm
Reference Position B (Bottom): 34
Storage Capacity: 50
PCB Slot : Width - 5mm Depth – 3.5mm Pitch – 10mm
PCB Size : 355*(50 --320)mm
Top & Bottom Board: Metal
Lever Lock Quick Adjust
Surface Resistance : 10 to the 4 – 10 to the 6 Ω
Weight: 10.5 Kgs
Max Temp: 80 °C

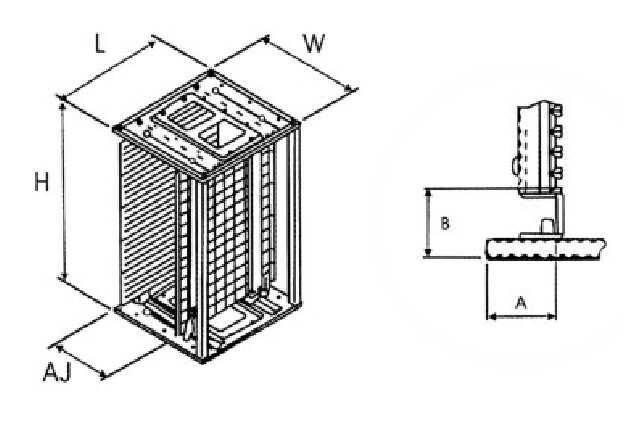

Dimensional Drawings

Warranty Information

1-Year Factory Parts Warranty
