Restacker 510mm

$13,950.00
SKU:
SGD-510U
Weight:
330.00 LBS
Width:
44.00 (in)
Height:
53.00 (in)
Depth:
32.00 (in)
Restacker 510mm
Adding to cart… The item has been added
Brochure Download

Description

Restacker 510mm
Model: SGD-510U
Inline SMT Restackers are designed to stack bare printed circuit boards from previous machine. They are built for easy operation and maintenance, featuring SMEMA communications, a pass-through option, hand-crank width adjustment, and adjustable height.
Specifications

Complies with IPC SMEMA 9851 standards
Dimensions: Length 650mm, Width 850mm, Height 1163.5mm
PCB size(LxW): 50x50mm - 600x510mm
PCB Thickness: 0.6 mm to 6 mm
Board Edge Clearance: 3 mm
Cycle Time: 7 seconds
Number of Drive Sections: 1
Width Adjust: Hand Crank
Control System: Mitsubishi MELSEC PLC
Operating Modes: Stack or Pass-Through
Includes Light Tower
Power Supply: 120 Volts
Air Supply: 80PSI

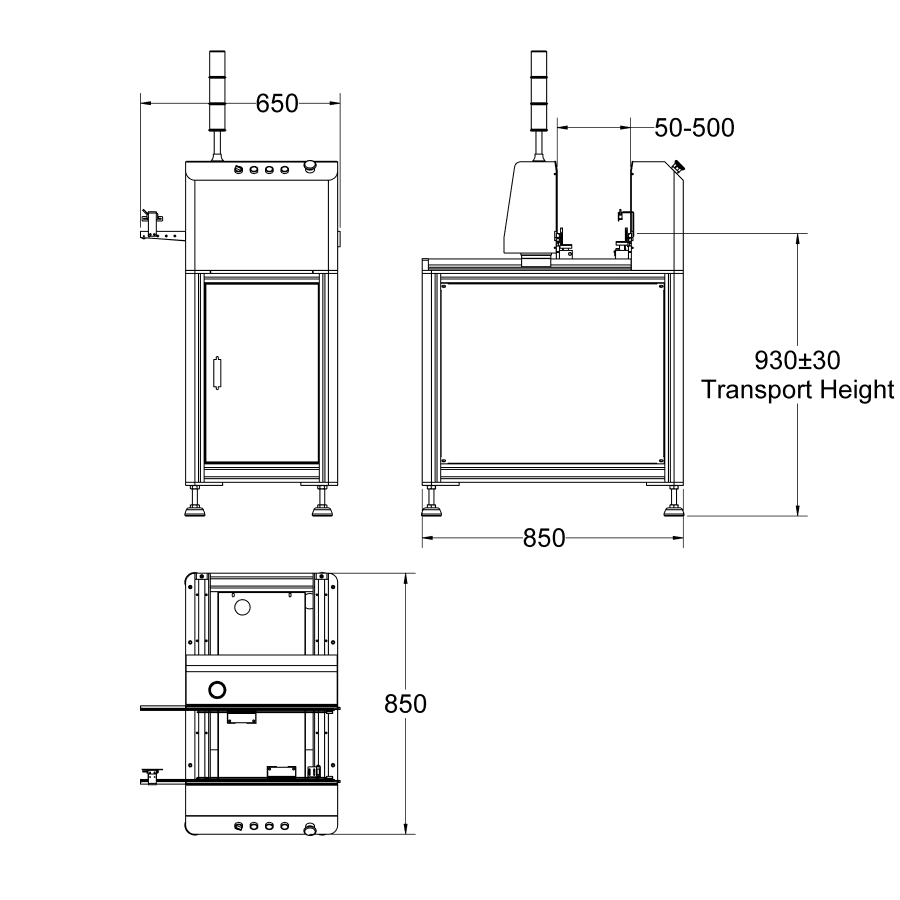

Dimensional Drawings

Warranty Information

1-Year Factory Parts Warranty
