Description
Shuttle Gate 510mm
Model: GSS-510-1000-2000
Inline SMT Shuttle Gates are designed to transfer printed circuit boards between manufacturing machines while allowing for an opening in the production line. They are built for easy operation and maintenance and include features such as SMEMA communication, safety sensors, a light tower, a hand crank for width adjustment, adjustable speed control, and adjustable height.
Specifications
Complies with IPC SMEMA 9851 standards
Dimensions: Length 600mm, Width 1098mm, Height 1250mm
PCB size(LxW): 50x50mm - 580x510mm
PCB Thickness: 0.6 mm to 6 mm
Board Edge Clearance: 4.5 mm
Transfer Speed: 0-10 M/Min.
28” Aisle Opening
Width Adjust: Hand Crank
Control System: Mitsubishi MELSEC PLC
Includes Light Tower
Power Supply: 120 Volts
Air Supply: 80PSI
Dimensions: Length 600mm, Width 1098mm, Height 1250mm
PCB size(LxW): 50x50mm - 580x510mm
PCB Thickness: 0.6 mm to 6 mm
Board Edge Clearance: 4.5 mm
Transfer Speed: 0-10 M/Min.
28” Aisle Opening
Width Adjust: Hand Crank
Control System: Mitsubishi MELSEC PLC
Includes Light Tower
Power Supply: 120 Volts
Air Supply: 80PSI
Options
Right to Left Board Flow

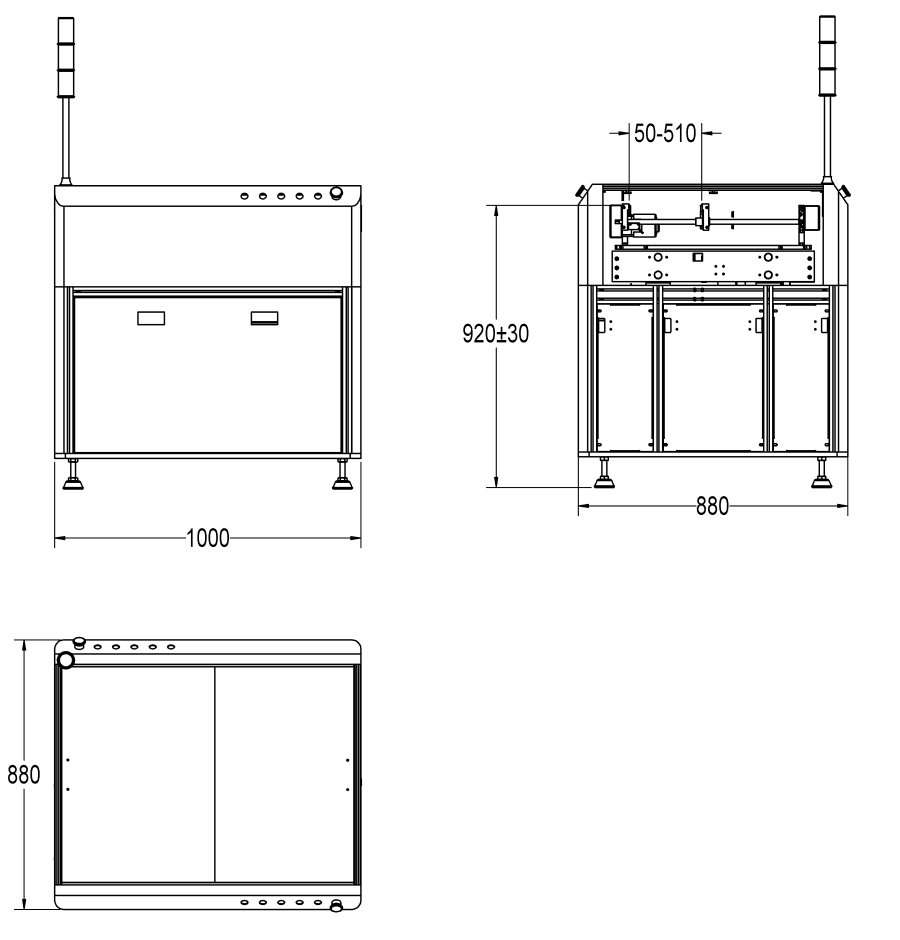

Dimensional Drawings
Warranty Information
1-Year Factory Parts Warranty
